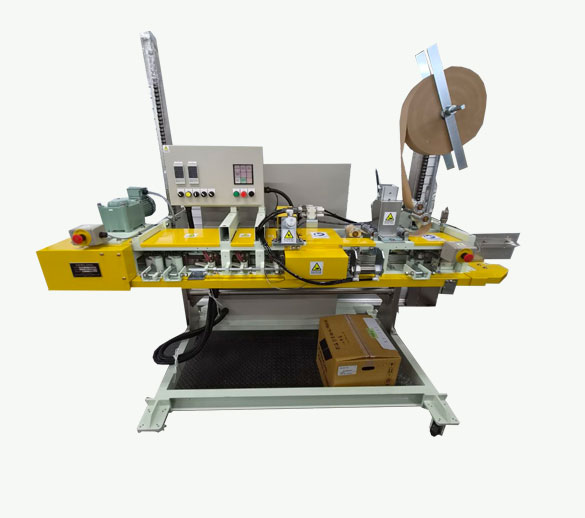

KS-313WST

페이지 정보

본문

(2 Folding & side seal nos tape : 미싱을 사용하지 않고 2번 접어준뒤 앞면을 40mm NOS tpate롤 실링하는 기계)

New Design and High Performance

- 40mm of NOS tape can be applied firmly onto
the top-folded side vertically.

- NOS tape can be adjusted the cutting position precisely to meet the bag width.

- Compact size to save a space. Low noise and vibration when operating.

- Simple design to be considered an easy maintenance.

Speed	Standard 10m/min. (7 to 13 m/min)
Capacity	200 bag/hr (For reference)
Top Folding	Double Folding (2 times folding)
NOS Tape	40 mm width
Air Consumption	Approx. 200NL/min. / 0.5Mpa
Electric Capacity	Approx. 3.6KVA
Dimension	2450(L) x 1070(W) x 2042(H) / mm

Without using a sewing machine, this model simply makes a crease, folds the bag top, and seals it with over tape.This sealer is highly effective at preventing foreign object contamination.

Speed	Variable m/min.	7 ~ 10
Heater	Capacity	500W×6
Drive Motors	Seaier	0.4KW
Drive Motors	Stitcher	-
Power Consumption		4KW
Dimensions(mm)	L	2,550
	W	1,060
	H	2,052
Net Weight kg(approx)		600
Sititching Machine Head		-
Option	Dustcleaner	×
Option	Crepetape	-
Applications		-
