Multi-Wall Paper Bag Making Machine
페이지 정보
본문

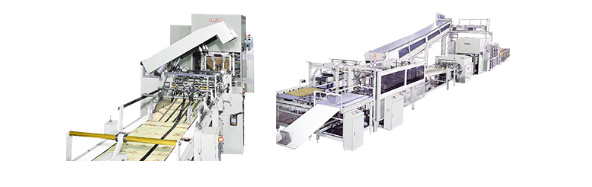

Model 500M/600M series multi-wall tuber is the stepped-cut tuber designed to minimize down time for tube size charge
and protect noise during operation. Model 600M-S series tuber is a universal type for availability of 4 kids cutting methods.
Convertion of paper laminated with PP/PE cloth also possible on 600M-S series at extra cost.
SPECIFICATIONS
545M | 546M | 550M | 645M | 646M | 650M | 645M-S | 646M-S | 650M-S | |
| Max.Speed* (bags/min.) | 300 | 300 | 250 | 250 | 250 | 250 | 250 | 250 | 250 |
| Tube Length (mm) | 350～1,050 | 450～1,200 | 450～1,350 | 350～1,050 | 450～1,200 | 450～1,350 | 350～1,050 | 450～1,200 | 450～1,350 |
| Tube Width(w/o gusset) (mm) | 280～600 | 280～650 | 300～750 | 280～600 | 280～650 | 300～750 | 280～600 | 280～650 | 300～750 |
| Tube Width(with gusset) (mm) | 280～400 | 280～400 | 300～550 | 280～400 | 280～450 | 300～550 | 280～400 | 280～450 | 300～550 |
| Gusset Width (mm) | 200 | 200 | 230 | 200 | 200 | 230 | 200 | 200 | 230 |
| Number of Ply | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Paper Roll Width (mm) | 1,230 | 1,330 | 1,530 | 1,230 | 1,330 | 1,530 | 1,230 | 1,330 | 1,530 |
| Paper Roll Diameter (mm) | 1,300 | 1,300 | 1,300 | 1,300 | 1,300 | 1,300 | 1,300 | 1,300 | 1,300 |
| Type of Cutting | A.B | A.B | A.B | A.B | A.B | A.B | A.B.C.D | A.B.C.D | A.B.C.D |
| Main Drive Motor (kW) | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
※Depending on various conditions.
Type of cutting:A.StepB.Flush (by perforation)C.Flush (by knife)D.Economy-cut

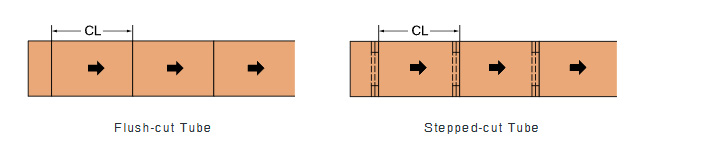

TYPE OF TUBE

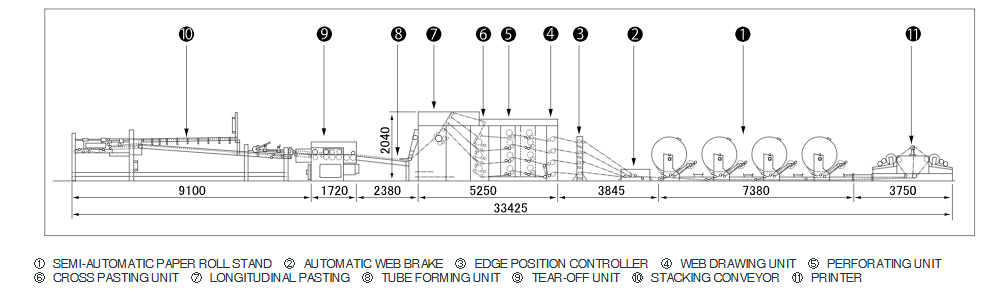

545M MACHINE CONSTRUCTION
