Cement Bag Bottomer
페이지 정보
본문

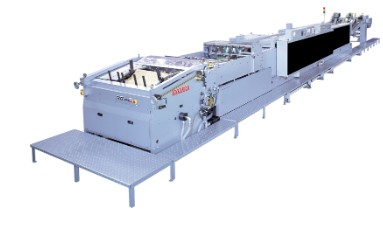

Model 713B bottomer is a high-performance machine designed to make both-end pasted bags with a valve from the tubes made by the tuber. It houses the main drive section in the gear box and requires less maintenance, is easy to operate and provides very high throughput. Also, the low-cost version Model 613B is available as a sister machine.
SPECIFICATIONS
Model |
613B |
713B |
| Capacity*(bags/min.) | 120 |
250 |
| Bag Length (mm) | 365～830 |
365～830 |
| Tube Length (mm) | 490～1,020 |
510～1,020 |
| Tube Width (mm) | 280～550 |
280～550 |
| Bottom Width (mm) | 85-130 |
85-130 |
| Bottom Center Distance(mm) | 280～700 |
280～700 |
| Bottom Opening Width (mm) | 230～320 |
230～320 |
| Valve Sheet Length (mm) | 80～220 |
80～220 |
| Valve Sheet Width(mm) | 100～280 |
100～280 |
| Number of ply | 2-4 |
2-4 |
| Main Drive Motor (kW) | 11 |
15 |
※Depending on various conditions.

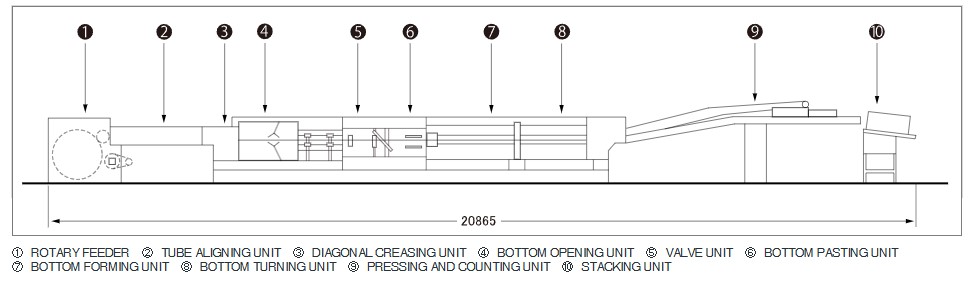

712B MACHINE CONSTRUCTION

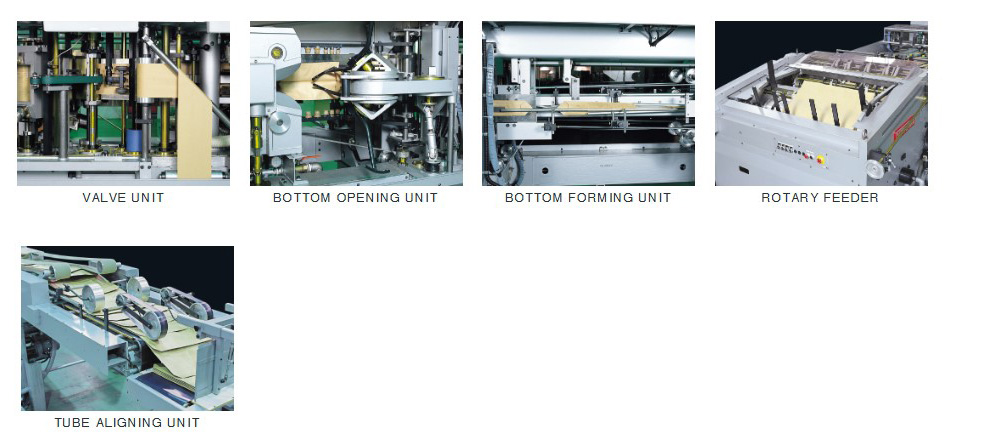

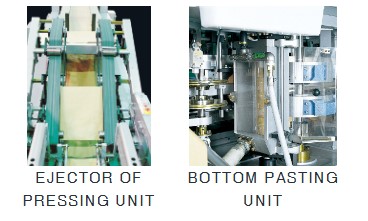

■713B

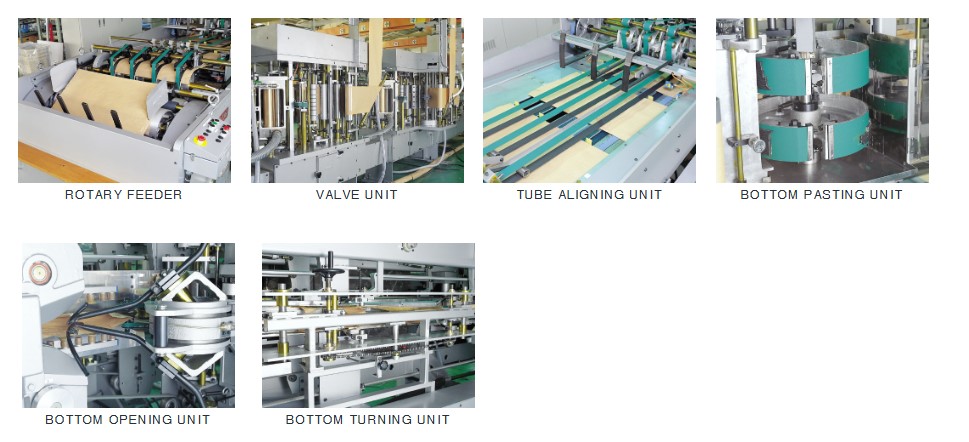

■613B
