icon2.gifAccumulated Technology To Converting Machinery
High quality slitters and winders operating at high-speed for business form paper are well thought of by film/paper manufacturers. Fine flexographic printing is achieved by ceramic anilox rolls which are hard for long life and long wear. Newlong also supplies treaters for print circuits and precision air shafts.

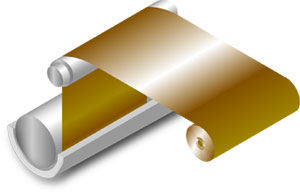

icon3.gifElectro deposition Titanium Drum
Copper material is dissolved and electrolyzed by means of high current density in the electrolytic equipment. Copper component contained in electroplating solution is deposited on cathode surface of Titanium drum. During the drum is rotating, thickness of the deposited copper will be increased, then, the copper with required thickness is peeled and wound by winding roll.
h1_3.jpg h1_4.jpg

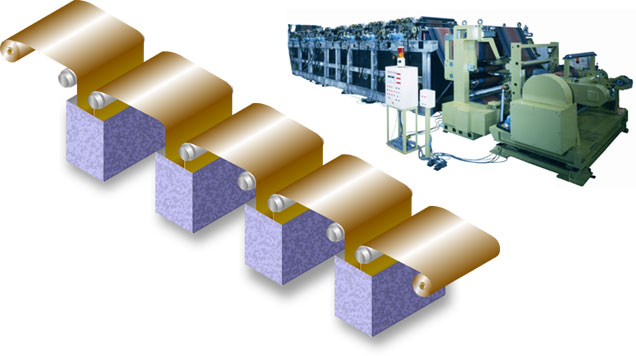

icon3.gifElectrodeposited copper Foil Treating machine
In order to give a required characteristics for Printed Circuit Board (PCB), this machine treats copper chemically and electrochemically by multiple immersion and washing for accomplishment. This machine is consisted of unwinder, treatment tanks, dryer, rewinder and all the related parts continuously to treat Matte side and Shiny side of the copper foil.

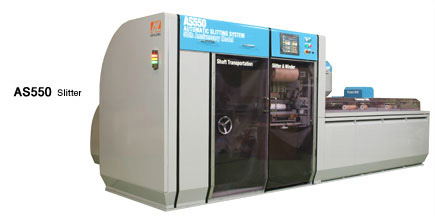

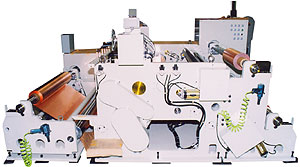

Slitter
h1_6.jpg h1_7.jpg

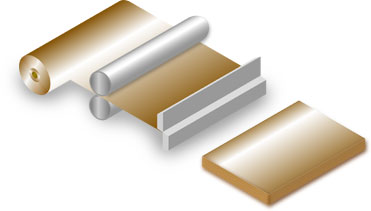

Sheeter

h1_10.jpg h1_11.jpg
roll sheet
